What CAD file formats and documentation are included?

Every project includes native CAD files in SolidWorks, Fusion 360, and CATIA V5, plus STEP AP242 and IGES neutral formats. 2D manufacturing drawings are issued in PDF and DWG with full GD&T annotation. Additional deliverables include CFD airflow and vacuum-loss simulation reports, bill of materials with globally sourced alternatives, and a full integration manual.

What is the project turnaround time?

Standard turnaround is 12 days for a vacuum gripper array or single-pad end effector, from contract signing to final file transfer. The schedule includes client approval gates at three stages: concept design, detailed mechanical design, and CFD validation.

Who owns the intellectual property after project completion?

100% of IP transfers to the client on final payment. The contract assigns all design rights, CAD files, and manufacturing documentation. A mutual NDA is signed at engagement, all project data is deleted after delivery under GDPR Article 17.

Can the suction cup system be integrated with our existing robot arm?

Yes. Our team designs mechanical flange interfaces, ROS and EtherCAT communication protocols, and custom mounting solutions for any robot arm. We have delivered vacuum gripper design specifications for over 50 robot arm models across 12 manufacturers including UR, FANUC, Yaskawa, KUKA, and ABB.

What regional compliance standards are covered?

CE technical file under Machinery Directive 2006/42/EC for the EU; ANSI/RIA R15.08 for North America; JIS B 8433 for Japan; KC certification support for Korea; GB standards for China. All compliance packages are delivered with the final CAD set.

What CAD file formats and documentation are included in the robotic gripper design package?

Every project includes native CAD files in SolidWorks, Fusion 360, and CATIA V5, plus STEP AP242 and IGES neutral formats. 2D manufacturing drawings are issued in PDF and DWG with full GD&T annotation. Additional deliverables include FEA and kinematic simulation reports, bill of materials with globally sourced alternatives, and a full integration manual. All files are transferred with full IP rights — no licence fees apply.

What is the cost of a custom robotic gripper design project?

Project pricing starts from $10,000 for single-axis vacuum grippers and ranges from $12,000 to $17,000 for two-jaw claw and multi-cup suction systems. All pricing is fixed before contract signing. A free feasibility assessment with an exact cost breakdown is available within 24 hours of enquiry.

What is the project turnaround time for robotic gripper design?

Standard turnaround is 4-8 weeks from contract signing to final file transfer. The schedule includes client approval gates at three stages: concept design, detailed mechanical design, and FEA validation. A 14-day expedited option is available for standard two-jaw configurations.

What warranty and post-project support terms apply?

All projects include a 24-month design integrity warranty. Free design revisions are provided for any manufacturing non-conformance attributable to errors in the design documentation. A 90-day technical support window is included at no additional cost.

Who owns the intellectual property after project completion?

100% of IP transfers to the client on final payment. The contract assigns all design rights, CAD files, and manufacturing documentation before work begins. A mutual NDA is signed at engagement. A formal IP assignment certificate is issued on completion and all project files are permanently deleted.

Can the robotic gripper design be integrated with our existing robot arm?

Yes. Our team designs mechanical flange interfaces, ROS and EtherCAT communication protocols, and custom mounting solutions for any robot arm configuration. We have delivered designs for over 50 robot arm models across 12 manufacturers including UR, FANUC, Yaskawa, KUKA, and ABB.

What regional compliance standards are covered in the design package?

CE technical file under Machinery Directive 2006/42/EC for the EU; ANSI/RIA R15.06 for North America; JIS B 8433 for Japan; KC certification support for Korea; GB standards for China. All compliance packages are delivered with the final CAD set.

Designing a suction cup system robotics: engineered for maximum performance

Custom suction cup system design for robotics - vacuum end-effector arrays, bellows-style pads and venturi vacuum generation for glass, cardboard, sheet metal and electronics handling. Holding force up to 300 kg. Fixed price. 12-day delivery

Designing a suction cup system robotics

Engineering design: Meta Decod

Old price: USD 17000.00

Price: USD 14000.00

Order a project by phone: +31 970 102 65214

Order a project by email: info@metadecod.com

CAD robot design: SolidWorks, Fusion 360, CATIA, AutoCAD, GrabCAD

Turnaround: 12 days (standard vacuum array)

Warranty: 12-month design integrity

Standards: ISO 9001:2015, ISO 10218-1:2023, CE, ANSI/RIA R15.08, RoHS

Integration: ROS, EtherCAT, 50+ robot arm models

IP ownership: 100% transfers to client on final payment

Our engineers are ready to start your project — 2D and 3D drawings included.

Service overview

What our suction cup system design service covers

Our team specialises in designing a suction cup system robotics customers can rely on for glass handling, cardboard and carton packaging, electronics assembly and sheet-metal transfer. Whether you need a multi-cup vacuum array for palletising, a single bellows-style pad for uneven surfaces, or a compact venturi-driven gripper for a compact 6-axis arm, our engineers deliver a complete mechanical package — from concept CAD to manufacturing-ready blueprints.

Every project is treated as custom robot design from the ground up rather than an off-the-shelf catalogue selection. Robot design calculations for vacuum-loss, cycle time and pad wear are run before a single CAD line is drawn, and topology design of robot mechanisms is applied to the mounting bracket and manifold housing to cut mass by up to 30% without compromising robotic mechanical design integrity.

CAD is delivered in SolidWorks, Fusion 360, CATIA V5 and AutoCAD with full GD&T annotation — a genuine cad robot design and robotic cad design workflow, not a re-skinned template. CFD and kinematics simulation reports are included as standard. All work meets ISO 10218-1:2023 and ISO 9001:2015, and is validated to 150% of maximum rated holding force.

Our engineers also handle the problems generic catalogue grippers can't: robotic joint design for articulated multi-pad heads, robotic force sensing design for grip verification on fragile parts, and robotic compliance mechanism design for sub-millimetre precision pick-and-place. View our industrial gripper engineering portfolio.

Engineering design process

How our suction cup system design service works: 4 stages

From requirements brief to final file handover in 12 days. Every stage includes a client approval gate.

Requirements analysis

Submit your project brief. Engineers define holding force (up to 300 kg), target surface material and porosity, operational cycle life and robot arm integration requirements. A preliminary feasibility report with a fixed price is delivered within 4 hours.

≤ 4 hours

CAD modelling & CFD simulation

Detailed 3D models built in SolidWorks, Fusion 360 or CATIA V5, validated with CFD for airflow and robotic load distribution across the pad array. View a warehouse automation case study.

Days 1–7

Prototype validation

Physical leak-rate and holding-force testing to 150% of rated load. Cycle time and energy efficiency are optimised and documented in ISO-compliant test reports. Fatigue analysis and stamped engineering calculations are provided for compliance documentation.

Days 7–10

Handover & integration support

Complete package delivered: STEP/IGES files, robot design blueprints with GD&T, CFD reports, bill of materials, integration manual and IP assignment certificate. Optional on-site commissioning. 12-month design warranty.

Day 12

What you receive

Complete suction cup system design delivery package

Every suction cup system design service project includes native CAD files, simulation data and full IP rights — no licence fees apply.

Native CAD files

SolidWorks, Fusion 360, CATIA V5 native files plus STEP AP242 and IGES neutral formats for all 3d robot design workflows.

Manufacturing blueprints

2D drawings in PDF and DWG with full GD&T annotation. Robot design blueprints include all tolerances for direct production use.

CFD & kinematics reports

CFD airflow and vacuum-loss simulation to ISO 10218-1:2023, kinematics validation, fatigue analysis and structural analysis to 150% of rated holding force.

Bill of materials

Full BOM with globally sourced alternatives. Includes robotic actuators design specifications and robotic compliance mechanism design details.

Integration manual

ROS and EtherCAT communication protocols, mechanical flange interface drawings for UR, FANUC, KUKA, Yaskawa and ABB arms.

IP assignment certificate

100% of IP transfers to client on final payment. Mutual NDA before engagement. All project data deleted under GDPR Article 17.

Why engineering teams choose us

What makes our suction cup system design service different

Mechatronics engineers with 13+ years in vacuum handling and end-of-arm tooling. 12-day turnaround against an industry average of 5–7 weeks.

12-day turnaround

Industry average is 5–7 weeks. Our four-stage process delivers a complete vacuum gripper array or single-pad end effector in 12 days from contract signing.
12-month design warranty on all specifications

Free revisions for any manufacturing non-conformance attributable to design documentation errors. 90-day technical support included.
Mechatronics engineers, 13+ years in vacuum and pneumatic systems

Every suction cup system design service project is led by an engineer with hands-on experience in food-grade, electronics and glass-handling vacuum tooling.
30% less material waste through topology optimisation

Applied to every suction cup gripper manifold to reduce material usage without compromising robotic load-bearing performance.
Global engineering offices

Detroit, Stuttgart, Singapore, Tokyo and Seoul. 24/7 support via WeChat, Line and KakaoTalk.

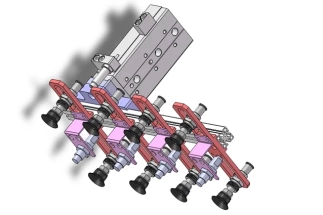

Bellows-style suction pad assembly — 3D CAD model with vacuum manifold and force distribution analysis

Technical compliance

Safety standards in our suction cup system design service

Every vacuum gripper design undergoes three-stage validation: CFD simulation to ISO 10218-1:2023, physical leak-rate and holding-force testing to 150% of rated load, and third-party certification via TÜV and UL.

ISO 9001:2015

Quality management system — design and manufacturing process control

ISO 10218-1:2023

Industrial robot safety — requirements for industrial robots

ANSI/RIA R15.08

Mobile robot safety — North America market readiness

CE 2006/42/EC

CE technical file under EU Machinery Directive

RoHS 3 & REACH

Material compliance — restricted substances and chemical safety

FDA-grade elastomers

Food-safe pad materials available for packaging and pharma applications

Regional engineering expertise

Robotic claw design service - global delivery

Delivered from offices in Amsterdam, Detroit, Stuttgart, Singapore, Tokyo and Seoul. Compatible with UR, FANUC, KUKA, Yaskawa, ABB, Kawasaki, EPSON, DENSO and Hyundai Robotics.

North America

ANSI/RIA R15.08-compliant robot claw design

ROI-focused robotic claw design service with cycle time optimisation for automotive and aerospace integration. Full liability coverage. Compatible with Universal Robots, KUKA and ABB. Robotic arm engineering calculations.

Europe

CE-certified robotic claw and clamp design

CE-certified robotic clamp design under Machinery Directive 2006/42/EC. GDPR-compliant documentation. Sustainable material selection with energy-optimised actuation systems. Offices in Amsterdam and Stuttgart.

Asia

Robot claw grabber design for Asian manufacturers

Local teams in Tokyo, Seoul and Shanghai. 24/7 support via WeChat, Line and KakaoTalk. Guaranteed compatibility with FANUC, Yaskawa, Kawasaki, EPSON and Hyundai Robotics. Robotic arm control system integration.

Frequently asked questions

Suction cup system design service — common questions

What is included in the suction cup system design service delivery package?

You receive native CAD files (Fusion 360, CATIA V5, SolidWorks), STEP/IGES exports, CFD airflow and vacuum-loss simulation reports, manufacturing blueprints with GD&T, a bill of materials and an integration manual. Full IP rights are transferred — no licence fees apply. Prototype fabrication and on-site integration support are available as optional services. View our robotic gripper design portfolio.

How do you validate holding force and leak safety in a vacuum gripper design?

Every suction cup system design undergoes three-stage validation: CFD simulation of airflow and vacuum-loss to ISO 10218-1:2023, physical leak-rate and holding-force testing to 150% of maximum rated load, and third-party certification support via TÜV and UL. Stamped engineering calculations and fatigue analysis are provided for your compliance documentation.

Who owns the intellectual property after the project?

100% of IP transfers to the client on final payment. The contract explicitly assigns all design rights, CAD files and manufacturing documentation. We sign NDAs before engagement and delete all project data after delivery under GDPR Article 17.

Can the suction cup system handle porous or uneven surfaces?

Yes. We design bellows-style and multi-lobe pads with independent vacuum zoning for cardboard, textured glass, curved sheet metal and other non-flat or semi-porous surfaces, backed by CFD-verified leak-rate calculations and robotic force sensing design for grip confirmation.

Can you integrate the suction cup design with our existing robot arm?

Yes. Our robotics hardware engineering team designs mechanical interfaces, ROS and EtherCAT communication protocols, and custom mounting solutions. We have delivered vacuum gripper design specifications for over 50 robot arm models across 12 manufacturers including UR, FANUC, Yaskawa, KUKA and ABB.

What is the cost of a custom suction cup system design project?

Suction cup system design service projects start from USD 14,000. The price is fixed before contract signing. A free feasibility assessment with an exact cost breakdown is available within 4 hours. Contact us at info@metadecod.com or call +31 970 102 65214.
